Mulund, Mumbai, Maharashtra
- GST NO. : 27AAACG1454B1Z6
| Business Type | Manufacturer, Exporter, Supplier |
| Capacity | 200+ MPM |
| Type | Bopp Self Adhesive Tape Plant |
| Voltage | 440V |
| Click to view more | |
Product Details
Goldmann Automatics Pvt Limited (GAPL) leads the path by producing the highest quality Adhesive Coating Plant for over decades. GAPL specialises in manufacturing High Speed Adhesive Coating lines which are a perfect blend of Efficiency, Productivity & Reliable Performance.
Our BOPP Adhesive Coating Plant ensures truly world-class level quality, output & performance which is due to our efficient design & incorporation of all the latest technological features & innovations.
Technical Data & Features:
· Web Width: 1000mm – 1650mm
· Coating Speed: 200+ MPM depending on the Model
· Unwind Station: Different models as per customer’s need
o Automatic Turret Unwinder with Auto Splicing
o Chain conveyor type for Jumbo Roll lifting
· Coating Station: Reverse Roll Kiss Coating with Mayer Bar Unit
· Adhesive Drying Tunnel:
o Depending on the Model varying from 60 Ft (18 m) to 150 Ft (46 m)
o High efficiency drying ovens
o Film conveyance by means of idle or driven rolls
· Drawing & cooling unit with chilled roll for high thermal energy exchange
· Automatic Turret Rewinder with Auto Changeover & Splicing
· Fully PLC (Siemens) Based WiFi enabled Control System with Remote Troubleshooting & Telematics
· Remote troubleshooting access of Control Panel for minimal downtime
· Web monitoring system (Optional)
Technical Specifications and Machine Features
| Web | 800 to 1300 mm (optional) |
| Core ID | 76/150 mm |
| Production Speed | 10 to 100 metres/ min depending on coating weight and type of coating |
| Drying System | Hot air |
| Heat Source | Thermic oil / Hot air / Stream |
| Adhesives | Water base / Solvent base |
| Web support | Idler / driver rolls |

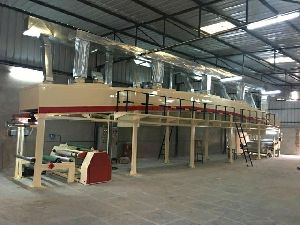

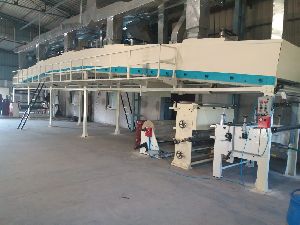

Looking for "BOPP Adhesive Tape Coating Plant" ?
